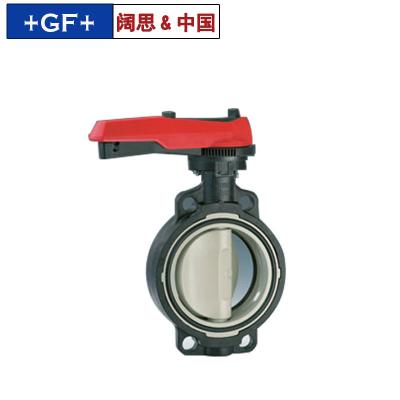

[GF Manual Butterfly Valve] 567-568 Manual Butterfly Valve

(0 reviews)

Get Price

(192) Views

(0) Contacts

Contact Company

Shanghai Kuosi Electronic Co., Ltd.

Shanghai, China

(1728) Views

(11) Contacts

GF Piping Systems Type 567/568 Series Butterfly Valves are available in both wafer and lug styles.
The modular design of our systems allows you to change individual system components quickly, easily, and at little cost.
【 GF manual butterfly valve】567-568 manual butterfly valve advantages:

Compared with the concentric butterfly valve, the driving torque is reduced by 50% due to the double eccentric design
Significantly reduced wear
An electric position indicator can be integrated into the mounting flange
Optimized gasket
All components in contact with the medium are made of the same pipe material, so leakage can be reduced to a minimum
The handle is made of glass fiber-reinforced polypropylene (PP-GF 30 ), the angle of the ratchet device is 5°, and it can be locked

【 GF Manual Butterfly Valve】Model 567-568 Manual Butterfly Valve Options:

Manual valve with handle or reduction gear
Pneumatic or electrical actuators

                                                            Ranges
                                                            Type 567:  d63 DN50 t/m d315/DN300 Type 568:  d63 DN50 t/m d225/DN200

                                                            Pressure Rating
                                                            Bidirectional PN 10

                                                            Connection
                                                            Wafer or Lug

                                                            Standard
                                                            ISO, BS, ASTM and JIS

                                                            Materials
                                                            PVC-U, PVC-C, ABS, β-PP-H, PVDF

                                                            Seals
                                                            EPDM, FPM and others (if required)
